Table of Contents Ethernet Cable Types

1. CAT 5 Ethernet Cable

2. CAT 5e Ethernet Cable

3. CAT 6 Ethernet Cable

4. CAT 6a Ethernet Cable

5. CAT 7 Ethernet Cable

6. CAT 8 Ethernet Cable

How to Choose an Ethernet Cable

Ethernet Cable Types
Ethernet cable is a type of cable that is used to connect network devices, and it can transmit data and power. There are many types of Ethernet cables, and different types have different performances and specifications. Below we will introduce some common types of Ethernet cable.

1. CAT 5 Ethernet Cable

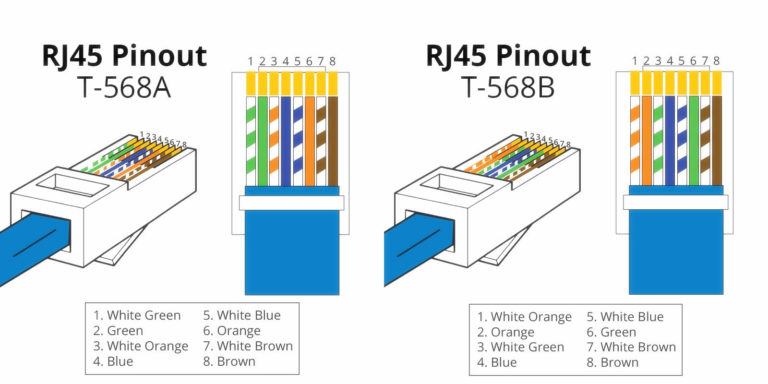

CAT 5 is an abbreviation for Category 5, and it is a standard Ethernet cable, which consists of four pairs of twisted wires, each pair of wires is colored orange, green, blue, and brown. CAT 5 Ethernet cable can support a maximum data transfer rate of 100 Mbps, and the maximum transmission distance is 100 meters. CAT 5 Ethernet cable is suitable for some basic network applications, such as home networks, office networks, etc.

2. CAT 5e Ethernet Cable
CAT 5e is an abbreviation for Category 5 enhanced, and it is an improved version of CAT 5 Ethernet cable, which has improved transmission performance and can support a maximum data transfer rate of 1 Gbps, and the maximum transmission distance is 100 meters. CAT 5e Ethernet cable can also reduce signal crosstalk and loss, and improve signal quality and stability. CAT 5e Ethernet cable is suitable for some high-speed network applications, such as video conferencing, online gaming, etc.

3. CAT 6 Ethernet Cable
CAT 6 is an abbreviation for Category 6, and it is a more advanced Ethernet cable, which consists of four pairs of twisted wires, each pair of wires is colored orange, green, blue, and brown. CAT 6 Ethernet cable can support a maximum data transfer rate of 10 Gbps, and the maximum transmission distance is 55 meters. CAT 6 Ethernet cable can also provide higher bandwidth and lower latency, and improve network efficiency and performance. CAT 6 Ethernet cable is suitable for some high-end network applications, such as data centers, cloud computing, etc.

4. CAT 6a Ethernet Cable
CAT 6a is an abbreviation for Category 6 augmented, and it is an enhanced version of CAT 6 Ethernet cable, which has optimized transmission performance and can support a maximum data transfer rate of 10 Gbps, and the maximum transmission distance is 100 meters. CAT 6a Ethernet cable can also resist external electromagnetic interference, and improve signal reliability and security. CAT 6a Ethernet cable is suitable for some extreme network environments, such as industrial areas, hospitals, etc.

5. CAT 7 Ethernet Cable
CAT 7 is an abbreviation for Category 7, and it is the most advanced Ethernet cable, which consists of four pairs of twisted wires, each pair of wires is colored orange, green, blue, and brown. CAT 7 Ethernet cable can support a maximum data transfer rate of 10 Gbps, and the maximum transmission distance is 100 meters. CAT 7 Ethernet cable can also provide higher frequency and lower noise, and improve signal clarity and accuracy. CAT 7 Ethernet cable is suitable for some most advanced network applications, such as virtual reality, artificial intelligence, etc.

6. CAT 8 Ethernet Cable
CAT 8 is an abbreviation for Category 8, and it is the latest Ethernet cable, which consists of four pairs of twisted wires, each pair of wires is colored orange, green, blue, and brown. CAT 8 Ethernet cable can support a maximum data transfer rate of 40 Gbps, and the maximum transmission distance is 30 meters. CAT 8 Ethernet cable can also provide higher frequency and lower attenuation, and improve signal strength and stability. CAT 8 Ethernet cable is suitable for some ultra-high-speed network applications, such as 8K video, 5G network, etc.

How to Choose an Ethernet Cable
To choose the right Ethernet cable, you need to consider the following factors:

Network requirements: Different network applications require different data transfer rates and bandwidths. For example, if you only use it for basic network activities, such as surfing the Internet, watching videos, etc., then CAT 5e Ethernet cable can meet your needs. If you need to do some high-speed network activities, such as video conferencing, online gaming, etc., then CAT 6 Ethernet cable or CAT 6a Ethernet cable is more suitable. If you need to do some high-end network activities, such as data center, cloud computing, etc., then CAT 7 Ethernet cable or CAT 8 Ethernet cable is more suitable.
Network environment: Different network environments require different signal quality and reliability. For example, if your network environment is simple, without too much electromagnetic interference and signal loss, then any type of Ethernet cable can be used. If your network environment is complex, with a lot of electromagnetic interference and signal loss, then you need to choose some Ethernet cable that can resist interference and attenuation, such as CAT 6a Ethernet cable, CAT 7 Ethernet cable, or CAT 8 Ethernet cable.
Network budget: Different Ethernet cables have different prices and cost-effectiveness. For example, CAT 5e Ethernet cable is the cheapest Ethernet cable, but its performance is also the lowest. CAT 8 Ethernet cable is the most expensive, but its performance is also the highest. You need to choose an Ethernet cable that meets your budget and performance according to your network requirements and network environment.

Wrapping Up: Ethernet Cable Types
Ethernet cable is a common type of network cable, which can connect different network devices, and transmit data and power. There are many types of Ethernet cables, and different types have different performances and specifications. You need to choose the right Ethernet cable type according to your network requirements, network environment, and network budget.
