Cat6 UTP Cable
Cat6 UTP Cable

Cat6 UTP Cable

The Cat6 UTP Cable is an advancement beyond the typical Cat5e cable. It features four twisted pairs and is designed for 1000Base-T Ethernet applications, offering a bandwidth of up to 550MHz.
Send Inquiry

 The Cat6 UTP Cable is an improvement over the typical Cat5e cable. It features four twisted pairs and is designed for 1000Base-T Ethernet applications, offering a bandwidth of up to 550 MHz. It can also support speeds of up to 10G over a transmission distance of up to 37 meters. This cable is ideal for all your advanced networking needs.

Product Features:


  2. Utilizes pure solid copper conductors and a CMR flame-retardant jacket for enhanced stability.


  4. Supports high speeds up to 550 MHz, 1G/10G-T, and is compatible with PoE/PoE+/PoE++ (IEEE 802.3af/at/bt).

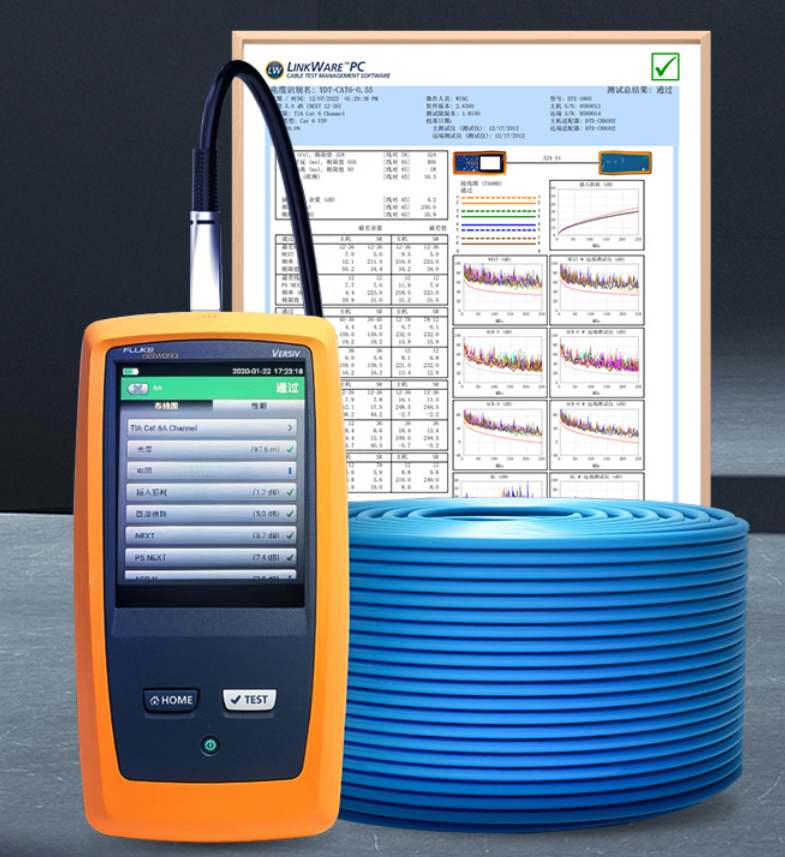

  6. Tested using the Fluke DSX-8000 cable analyzer.


  8. Available in various colors and lengths, making it easier to organize and simplify complex cable runs.


  10. Suitable for custom network installation projects and backward compatible with Cat5e/5 speeds.


  12. Comes in tangle-free and untwisted packaging for easy handling.

Specifications：

Cable Type

Cat 6

Shielding Type

UTP

Cable Jacket

PVC CMR

Cable Length

1000ft (305m)

Reference Bandwidth

550MHz

Data Rate Support

10/100/1000Base-T

Wire Gauge

23AWG

Conductor Type

Pure Bare Copper Wire

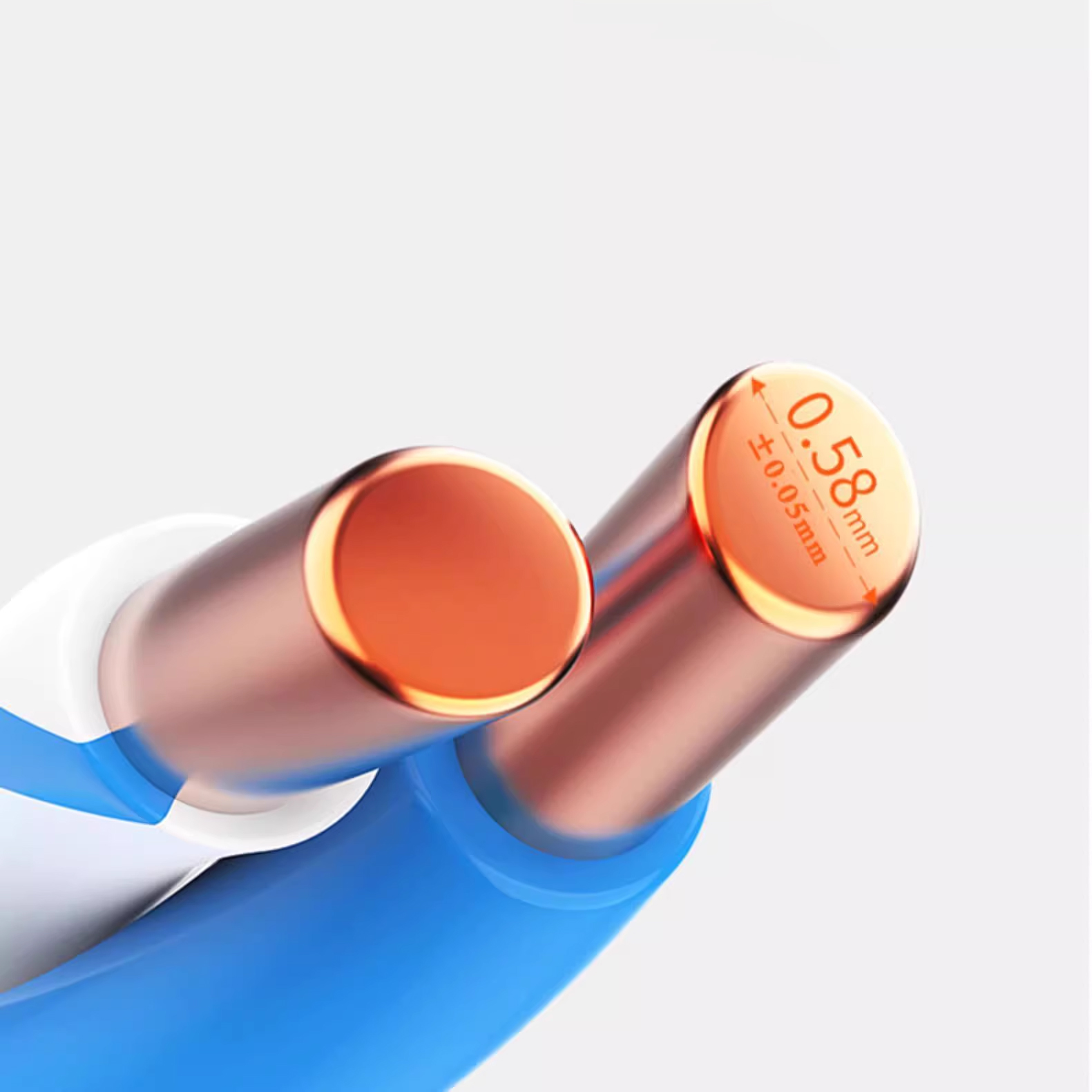

Conductor Diameter (mm)

0.58 ± 0.005

Cable Outer Diameter (mm)

6.20 ± 0.40

Maximum Installation Tension (N)

110

Bend Radius (mm)

26.4

Operating Temperature

-20 to 75°C (-4 to 167°F)

Installation Temperature

-10 to 50°C (-14 to 122°F)


Caring Service – Worry-Free Shopping:

We provide exceptional service for our Cat6 UTP Ethernet cables, ensuring a worry-free shopping experience. If you encounter any issues during use, don't worry-our professional after-sales team is ready to offer full support. Whether it's answering questions or providing technical assistance, we are dedicated to serving you. Our goal is to ensure your satisfaction with every Cat6 UTP cable purchase, making your shopping experience hassle-free and enjoyable.



FAQ:

1,Q: What are the differences between Cat6 UTP and Cat5 cables?

    A: Cat6 UTP cables offer higher bandwidth and faster data transfer speeds than Cat5 cables, making them suitable for high-bandwidth applications, such as HD video streaming and large file transfers.

2,Q: Do I need Cat6 UTP cables even if my internet speed is not very fast?

    A: Even with slower internet speeds, using Cat6 UTP cables can improve network performance and provide future-proofing. It's an investment in your network infrastructure.

3,Q: What is the maximum transmission distance for Cat6 UTP cables?

     A: The maximum transmission distance for Cat6 UTP cables is typically 100 meters (about 328 feet), but factors such as interference and cable quality can affect the actual distance.

4,Q: What's the difference between Cat6 UTP and Cat6 UTPa cables?

     A: Cat6 UTPa is an advanced version of Cat6 UTP, offering higher bandwidth and better interference resistance, making it suitable for 10Gbps and higher-speed applications.

5,Q: Do I need special tools or skills to install Cat6 UTP cables?

     A: Installing Cat6 UTP cables requires basic network installation skills, but generally does not require special tools. Standard RJ45 connectors are typically used for Cat6 UTP installations.

6,Q: How can I protect and maintain Cat6 UTP cables to ensure optimal performance?

     A: To maintain optimal performance, avoid bending, twisting, or squeezing the cables. Regularly check connections to ensure they remain tight for reliable performance.
