Patch Panels
Passed the test, customized network patch panel, white background, unshielded Cat5e 24-port network patch panel Product description.
Your Leading Patch Panels Supplier
Shenzhen HaiKangSu wire & Cable Co., Ltd., is a professional integrated trading company specializing in the production and processing of copper-core cables and wires. Patch panels are the ultimate tool for network organization. It serves as a central point where all cables can be neatly labeled and laid out. Patch panels are how network administrators avoid tangled knots of CAT5 cable across the Local Area Network (LAN) shack.
-
![24 Ports Rack Manager]()
24 Ports Rack ManagerIntroducing the Rack Manager Cable, the ultimate solution for organizing and securing cables in dataread more -

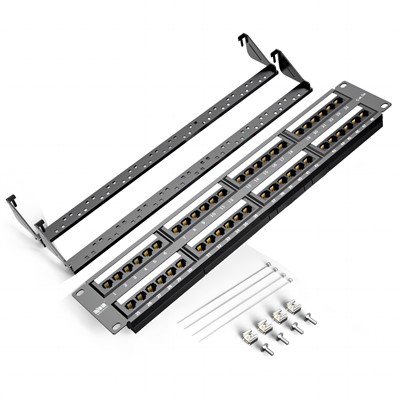

![Patch Panel 48-port]()
Patch Panel 48-portPatch Panel 48-port:Engineered for seamless integration within enterprise-grade networks and data ceread more -

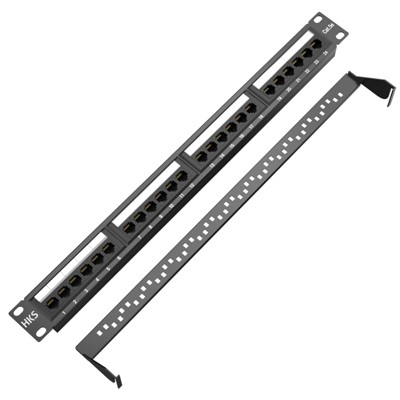

![24 port Network Patch Panel]()
24 port Network Patch PanelProduct FeaturesThe 24-Port Network Patch Panel is designed for installation in any EIA 19"read more -

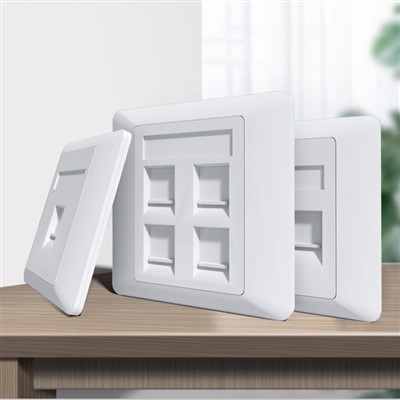

![Network Face Plate 86 Type Single Dual Port Network Face Plate Cat5e CAT6 RJ45]()
Network Face Plate 86 Type Single Dual Port Network Face Plate Cat5e CAT6 RJ45Based on the information provided, the QF500-1 Network Face Plate 86 Type Panel by HKS-Cable offersread more -

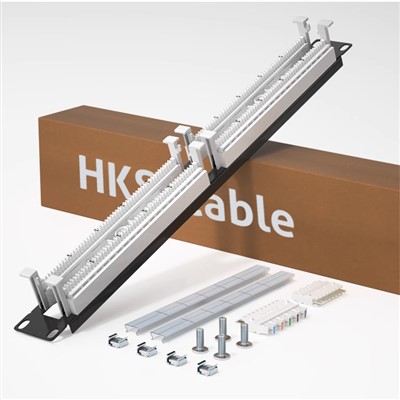

![Audio Patch Panel100-Port 110 Type RJ45 110-port]()
Audio Patch Panel100-Port 110 Type RJ45 110-portElectrical Characteristics:Voltage Rating: 125 VACCurrent Capacity: 1.5 AmpsContact Resistance: Lessread more -

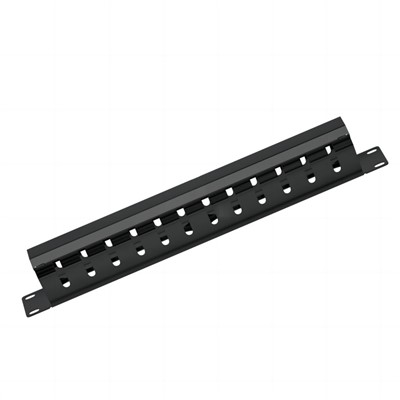

![Rack Cable Manager 12-port 19-inch 1U]()
Rack Cable Manager 12-port 19-inch 1UFeatures:12 numbered ports for organized cable managementAngled design for easy access to cables andread more -
![50-Port Telephone Patch Panels Cat3 RJ11 1U 19'']()
50-Port Telephone Patch Panels Cat3 RJ11 1U 19''High-Density Connectivity: Accommodates up to 50 RJ11 ports within a compact design, maximizing spacread more -

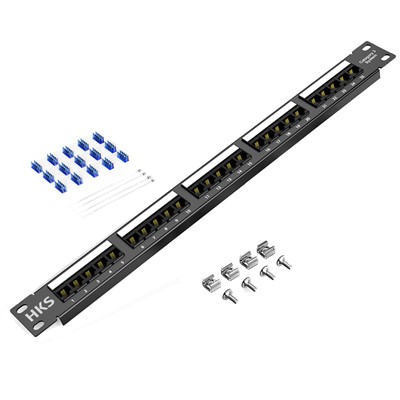

![Cat3 25 Port RJ11 Voice Patch Panel 1U UTP RJ45]()
Cat3 25 Port RJ11 Voice Patch Panel 1U UTP RJ45Product FeaturesManage and organize your voice connections with our high-quality patch panel. Featurread more
Why Choose Us?
Rich Experience
The company has its self-owned factory in Chigang Town, Jieyang City, Guangdong Province, China, with a development history of fifteen years and extensive production experience.
Professional Team
It employs a large workforce, including over 100 advanced technical professionals, and maintains strong partnerships with numerous domestic and international enterprises.
Accept ODM
We provide high-quality OEM services following important standards according to different customer requirements, including special lengths, colors, insulation materials and production standards.
Complete Qualifications
We supply cables and wires that conform to BSI, IEC standards, and Chinese national standards. Every aspect of our products and services undergoes rigorous checks to ensure that the products leaving the factory meet the standard requirements of our customers.
Type of Patch Panels
24 port Network Patch Panel
24-port Network Patch Panel, suitable for 10/100/1000/10GBase-T Ethernet Customized 48-port patch panel provides a high-density, easy-to-wire solution for data centers.
50-Port Telephone Patch Panels Cat3 RJ11 1U 19''
The 50-Port Telephone Patch Panels Cat3 RJ11 1U 19'' are designed to manage and organize telephone lines, providing superior connectivity and flexibility.
Patch Panel 48-port
Experience streamlined network connectivity with our Patch Panel 48-port, ideal for enterprise and data center environments. This panel seamlessly integrates into EIA 19" racks, simplifying the management of UTP/STP couplers for effortless network adjustments and expansions.
Rack Cable Manager 12-port 19-inch 1U
Keep your network rack organized, and your cables protected with the Rack Cable Manager 12-Port 19-Inch 1U. Crafted from sturdy steel, this high-density solution features 12 numbered ports for efficient cable routing and bundling.
Specifications of Patch Panels
|
Feature |
Specification |
|
Compatibility |
Cat3 |
|
Model |
QF9350-50 |
|
Construction |
SPCC + PC |
|
Connection Type |
Coupler Patch |
|
Panel Type |
Flat |
|
Operating Temperature Range |
-10 to 60°C (14 to 140°F) |
|
Number of Ports |
25 or 50 |
|
Color |
Black |
|
Wiring Scheme |
Straight-through |
|
Dimensions (HxWxD) |
88.9 x 483 x 10mm |
|
RoHS Compliance |
Yes |
Features of Patch Panels
High-Density Connectivity
Accommodates up to 50 RJ11 ports within a compact design, maximizing space efficiency and enabling a high volume of voice connections.
Cat3 Standard Compliance
Delivers reliable voice transmission, adhering to Cat3 specifications for optimal voice communication quality.
Seamless Integration
Designed for standard 19" racks, allowing for effortless installation and compatibility with diverse telephony setups.
Customizable Port Identification
Optional port labeling simplifies cable management and ensures easy identification of each connection, streamlining maintenance and troubleshooting.
Rugged Construction
Built with durable materials, ensuring longevity and resilience in demanding telecommunications environments.
Customization Options
Type
Customizable.
Material
Customizable.
Number of ports
Provides a variety of options to meet different installation needs.
MOQ
Customizable.
Ordering Process
COMMU NICATION DETAILS
Contact online customer service to communicate the details.
START DESIGNING
Start your prototype design.
CONFI RMATION OF THE FINAL DRAFT
Iterate on details to finalize.
PAYMENT OF DEPOSIT
Factory prepares materi-als and customers make deposits.
START OF PRODUCTION
Factory starts produc-tion.
DELIVERY RECEIPT
The customer confirms the quality of the goods and receives them.
Applications of Patch Panels
For small offices
Label each cable and panel port using the user's name or desk number for faster identification in case you need to do some troubleshooting or reconfiguration.
For data centers
Maintain detailed records of cable layouts and updates to quickly identify any issues and plan future expansions better. Also, adhere to industry standards for cable organization to ensures better scalability and maintenance, making your system more efficient and manageable in the long term.
For home entertainment setups
Hide cables using cable conduits, behind-wall solutions, or raceways to keep a clean aesthetic and avoid accidentally disconnecting them. It's also advisable to mark which cable corresponds to which device (e.g., game console, TV, speaker) in case you need to add or remove any equipment.
Ideal Storage Temperature for Patch Panels
Fiber optic cables and the components in a patch panel are sensitive to temperature changes. Extreme heat or cold can cause the fibers to expand or contract, which can lead to signal degradation.
For normal storage, the ideal temperature range is between 0°C and 40°C (32°F and 104°F). This range helps to keep the fibers in good condition and ensures that the panel's performance remains stable. If the temperature goes above 40°C, the materials in the patch panel can start to degrade. For example, the plastic components might become brittle, and the adhesive used to hold the fibers in place could start to break down. On the other hand, if it gets too cold, below 0°C, the fibers can become more prone to cracking.
Certificate
Payment Terms
T.T with 30% downpayment, 70%before shipment. Paypal or West Union also accept.
Packing & Transportation
